T688 Series Treatment Chairs

Spare Parts Catalogue

Item # Item Description Photo Inventory Revision Control / Notes
AP152-294 T688/B Fold-out Tray arms (Pair) - Wedgewood AP152-294
AU100085 T688/B 1" Round End Cap (P7691B) AU100085 This item has not been set up in our system. No inventory will be brought in.
AU100090 T688/B Ottoman without Spring - L/H AU100090
AU100103 T688/B Port Plug for Impulse Box AU100103 This item has not been set up in our system. No inventory will be brought in.
AU100104 T688/B Impulse Box Cover AU100104
AU100111 T688/B Port Plug for CB20 Control Box AU100111 This item has not been set up in our system. No inventory will be brought in.
AU100285 T688/B Impulse Box Cable (0964461-0500-B) AU100285
AU100322 T688/B Recline Cover AU100322
AU100340 T688/B Outer Tube Assembly for Arm - R/H AU100340
AU100341 T688/B Outer Tube Assembly for Arm - L/H AU100341
AU100366 T688/B M10 Jam Nut AU100366 This item has not been set up in our system. No inventory will be brought in.

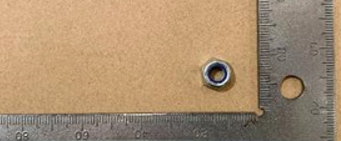

AU100379 T688/B M6 Nyloc Nut AU100379 This item has not been set up in our system. No inventory will be brought in.
AU100380 T688/B M8 Nyloc Nut AU100380
AU100395 T688/B CB6 Bracket (9271233) AU100395 This item has not been set up in our system. No inventory will be brought in.
AU100396 T688/B M10 Nyloc Nut AU100396
AU100426 T688/B 639 Rope Button AU100426
AU100440 T688 Battery Pack (Older Version) AU100440 Can be used on chairs manufactured prior to August 2021
AU100461 T688/B 1/4" BSW Nyloc Nut AU100461 This item has not been set up in our system. No inventory will be brought in.
AU100464 T688 Castor - Shoalhaven AU100464
AU100478 T688/B 3/16" BSW Nyloc Nut AU100478 This item has not been set up in our system. No inventory will be brought in.
AU100558 T688/B M10 x 20 x 1.5 Nylon Washer AU100558
AU100560 T688/B M6 x 12mm Shoulder Bolt AU100560 This item has not been set up in our system. No inventory will be brought in.
AU100563 T688/B 7/8" Square End Cap AU100563 This item has not been set up in our system. No inventory will be brought in.
AU100580 T688/B 1/4 x 1/2 Nylon Washer AU100580 This item has not been set up in our system. No inventory will be brought in.
AU100593 T688/B Front Top Link AU100593 This item has not been set up in our system. No inventory will be brought in.
AU100606 T688/B Seat Recline Lever AU100606
AU100612 T688/B 300mm Cable Tie AU100612 This item has not been set up in our system. No inventory will be brought in.
AU100614 T688/B MJB Impulse Box (MJB006-02) AU100614
AU100643 T688/B 3/16" BSW x 3/4" Roof Bolt AU100643 This item has not been set up in our system. No inventory will be brought in.
AU100645 T688/B M10 x 60mm Shoulder Bolt AU100645
AU100648 T688/B 8g x 5/8" CSK Self-tapping Screw AU100648 This item has not been set up in our system. No inventory will be brought in.
AU100679 T688/B M6 x 12 x 1.2 Flat Washer AU100679 This item has not been set up in our system. No inventory will be brought in.
AU100702 T688/B M10 x 21 x 1.6 Flat Washer AU100702
AU100733 T688/B 7 x 30mm Drywall Screw - Course AU100733
AU100747 T688/B Leg-rest Bottom Link AU100747
AU100769 T688/B Actuator Cable 500mm (00914657-500-B) AU100769
AU100770 T688/B M10 x 40mm Shoulder Bolt AU100770
AU100778 T688/B Tray Arm Cover AU100778
AU100799 T688/B 1/4" BSW x 1 3/4" SHSC Cap Bolt AU100799
AU100800 T688/B 8g x 3/4" Pan Head Self-tapping Screw AU100800 This item has not been set up in our system. No inventory will be brought in.
AU100801 T688/B 8g x 5/8" Pan Head Self-tapping Screw AU100801 This item has not been set up in our system. No inventory will be brought in.
AU100805 T688/B M6 x 16mm Button Head Cap Screw AU100805 This item has not been set up in our system. No inventory will be brought in.
AU100806 T688/B M6 x 25mm Button Head Cap Screw AU100806 This item has not been set up in our system. No inventory will be brought in.
AU100879 T688/B M6 x 12mm Button Head Cap Screw AU100879 This item has not been set up in our system. No inventory will be brought in.
AU100883 T688/B M6 x 20mm Button Head Cap Screw AU100883 This item has not been set up in our system. No inventory will be brought in.
AU100919 T688/B 10-16 x 22 Wafer Self-drilling Screw AU100919 This item has not been set up in our system. No inventory will be brought in.
AU100945 T688/B LA27 Actuator - Leg Lift (Memory) AU100945
AU100960 T688 LA27 Actuator - Back Lift (Memory) AU100960
AU100961 T688/B 3/16" BSW x 1" CSK Phillips Head Bolt AU100961 This item has not been set up in our system. No inventory will be brought in.
AU101010 T688/B M10 x 30mm Button Head Socket Screw AU101010 This item has not been set up in our system. No inventory will be brought in.
AU101013 T688/B Ottoman without Spring - R/H AU101013
AU101048 T688/B 8g x 25 CSKmm Self-drilling Screw Z/yellow AU101048
AU101099 T688/B BL1 Column - Mount Screws AU101099 You need 8 for a T688 chair and 16 for a T688B Chair
AU101106 T688/B Moulded Locking Lever - Thompson AU101106
AU101107 T688/B Hood Strut 500/200-Q11Q11-18/8- 100N AU101107
AU101257 T688/B Back Frame (older style) Can be used on T688 chairs produced prior to April 2020. Replacement is AU106097 (T688 Upper Back Mk2 - 1257)
AU101326 T688/B Walk Away Controls AU101326
AU101844 T688/B Plastic Tray Arm Cover with Rubber AU101844
AU102099-294 T688/B Rear Arm Pad - L/H - Wedgewood AU102099-294
AU102101-294 T688/B Rear Arm Pad - R/H - Wedgewood AU102101-294
AU103225 T688 Top Frame Assembly Serial # of chair and verification from Australia required before replacment to be identified. Can be used on T688 chairs produced prior to February 2022. Replacement is AU106188 (T688 Top Frame - Multi-voltage (Precious silver)
AU103226 T688/B Battery Back-up AU103226
AU103228 T688/B Central Lock Set AU103228
AU103231 T688 CPR Support Tube AU103231
AU103285 T688/B M10 x 25mm Button Head Cap Screw AU103285 This item has not been set up in our system. No inventory will be brought in.
AU103289 T688/B M8 x 30mm Button Head Cap Screw AU103289 This item has not been set up in our system. No inventory will be brought in.
AU103371 T688/B Tilt Frame Mk2 (old style) Serial # is required and validation from Australia required before replacement is identified Can be used on T688 chairs produced prior to December 2019. Replacement is AU106109 (T688 Tilt Frame Mk2)
AU103547 T688/B M6 x 12mm Female Hex Standoff AU103547 This item has not been set up in our system. No inventory will be brought in.
AU103595-294 T688/B Drop Arm Profile (Pair) - Wedgewood AU103595-294
AU104094A T688/B CB6 Main Cable - 110VAC (12110003) AU104094A Replacement for AU104094
AU104160 T688/B Braced Link - H-Link AU104160
AU104162 T688/B Handle AU104162
AU105027 T688/B Tilt Link - Steel AU105027 This item has not been set up in our system. No inventory will be brought in.
AU105035 T688/B 3/16" BSW x 2" CSK Phillips Head Bolt AU105035 This item has not been set up in our system. No inventory will be brought in.
AU105141 T688/B M10 x 60mm Socket Head Cap Screw AU105141 This item has not been set up in our system. No inventory will be brought in.
AU105197 T688/B Profile Post - Chromed Steel AU105197 This item has not been set up in our system. No inventory will be brought in.
AU105264 T688/B Ottoman Assembly Bracket (Pair) AU105264
AU105268 T688/B 80mm Stay-put Shock Cord Loop - Black AU105268
AU105277AS-294 T688 Backrest (Older Style) - Wedgewood AU105277AS-294 For chairs manufactured prior to April 2020 (Aluminum strip and White plastic hooks) Replacement for AU105277-294
AU105277HC-294 T688 Backrest - Wedgewood AU105277HC-294 For chairs manufactured after April 2020 (Grey Plastic Hooks and Clips)
AU105280 T688/B Lock Kit for Cable on BL1 Column AU105280
AU105281-294 T688 All-Over Leg-rest - Wedgewood AU105281-294
AU105283-AS T688/B Aluminum Seat Strip (Older Style) AU105283-AS Can be used on all T688 chairs produced prior to April 2020. Replacement for AU104191 (T688 Aluminum Seat Clip)
AU105284-AS T688/B Aluminum Back Strip (Older Style) AU105284-AS Can be used on all T688 chairs produced prior to April 2020. Replacement for AU104191 (T688 Aluminum Seat Clip) - confirm.
AU105300 T688/B M6 Demon Nut AU105300
AU105301 T688/B M6 x 8 Demon Bolt AU105301
AU105308-294 T688/B Headrest Pillow - Wedgewood AU105308-294
AU105315 T688/B 1/4" BSW x 2" SHSC Socket Head Cap AU105315 This item has not been set up in our system. No inventory will be brought in.
AU105388-294 T688/B Tray Arm Pad - R/H - Wedgewood AU105388-294
AU105389-294 T688/B Tray Arm Pad - L/H - Wedgewood AU105389-294
AU105416 T688/B M5 Nyloc Nut AU105416 This item has not been set up in our system. No inventory will be brought in.
AU105421 T688/B M10 x 20mm Nylon Hex Bolt AU105421
AU105543 T688B Backrest Actuator (LA27-C526-00) AU105543
AU105590 T688B CPR Support Tube AU105590 This item has not been set up in our system. No inventory will be brought in.
AU105596 T688B Base Assembly AU105596 This item has not been set up in our system. No inventory will be brought in.
AU105630-294 T688B All-Over Leg-rest - Wedgewood AU105630-294
AU105682 T688/B Central Locking Pedal with Rubber AU105682
AU105702 T688/B M6 x 16mm Shoulder Bolt AU105702
AU105731 T688/B Trinity Castor Washer - S12792 (M14) AU105731
AU105732AS-294 T688 Seat Pad (Older style) - Wedgewood AU105732AS-294 For chairs manufactured prior to April 2020 - Aluminum strips and white plastic clips
AU105732HC-294 T688 Seat Pad - Wedgewood AU105732HC-294 For chairs manufactured after April 2020 - Grey Plastic Hooks and Clips
AU105751 T688 M12 Dome Nut AU105751
AU105753-294 T688 Foot-rest Flap - Wedgewood AU105753-294
AU105826 T688/B M10 x 21 x 1.0 Nylon Washer AU105826
AU105829 T688 110V CB335-01 Control Unit AU105829
AU105831 T688B 110V CB420-00 Control Unit AU105831
AU105865-294 T688/B Tray Arm Pad with Bumper - L/H - Wedgewood AU105865-294
AU105866-294 T688/B Tray Arm Pad with Bumper - R/H - Wedgewood AU105866-294
AU105867 T688/B M6 x 12mm GR304 Button Head Socket Screw AU105867 This item has not been set up in our system. No inventory will be brought in.
AU105868 T688/B M6 GR304 Nylon Nut AU105868 This item has not been set up in our system. No inventory will be brought in.
AU105869-294 T688 Foot-rest - Wedgewood AU105869-294
AU105870-294 T688B Foot-rest Flap - Wedgewood AU105870-294
AU105872 T688/B Lower Arm Assembly - L/H AU105872
AU105873 T688/B Lower Arm Assembly - R/H AU105873
AU105878 T688/B Retrofit Foot-rest Recline Mechanism Assembly AU105878

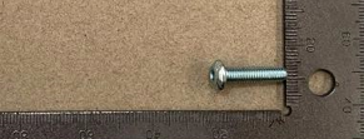

AU105879 T688/B M5 x 20mm Button Head Cap Screw AU105879 This item has not been set up in our system. No inventory will be brought in.
AU105880 T688/B M8 x 16mm Button Head Cap Screw AU105880 This item has not been set up in our system. No inventory will be brought in.
AU105887 T688/B Foot-rest Recline Bolt Set AU105887
AU105906 T688/B Ottoman Spring (MS0027) AU105906
AU105907 T688/B RSW-3845 Round Spacer AU105907
AU105908 T688/B RRHC-2511 Round Rubber Hole Cover AU105908
AU105917AS-294 T688B Seat Pad (Older Style) - Wedgewood AU105917AS-294 For chairs manufactured prior to April 2020 - Aluminum strips and white plastic clips. Replacement for AU105917-294
AU105917HC-294 T688B Seat Pad - Wedgewood AU105917HC-294 For chairs manufactured after April 2020 - Grey Plastic hooks and clips
AU105918-294 T688B Foot-rest - Wedgewood AU105918-294
AU105919AS-294 T688B Standard Back Pad (Older Style) - Wedgewood AU105919AS-294 For chairs manufactured prior to April 2020 - Aluminum strips and white plastic clips.New Item # for AU105919-294
AU105919HC-294 T688B Standard Back Pad- Wedgewood AU105919HC-294 For chairs manufactured after April 2020 - Grey Plastic hooks and clips
AU106009 T688/B 3/16" BSW Nyloc Nut AU106009 This item has not been set up in our system. No inventory will be brought in.
AU106010 T688/B 3/16" BSW x 1/2" CSK Phillips Head Bolt AU106010 This item has not been set up in our system. No inventory will be brought in.
AU106011 T688/B 3/16" BSW x 1 1/2" CSK Phillips Head Bolt AU106011 This item has not been set up in our system. No inventory will be brought in.
AU106012 T688/B BL1 - Column (New Style) AU106012 Newest version of column we use. Older model: AU101008.
AU106014 T688/B HB Cable Clip AU106014

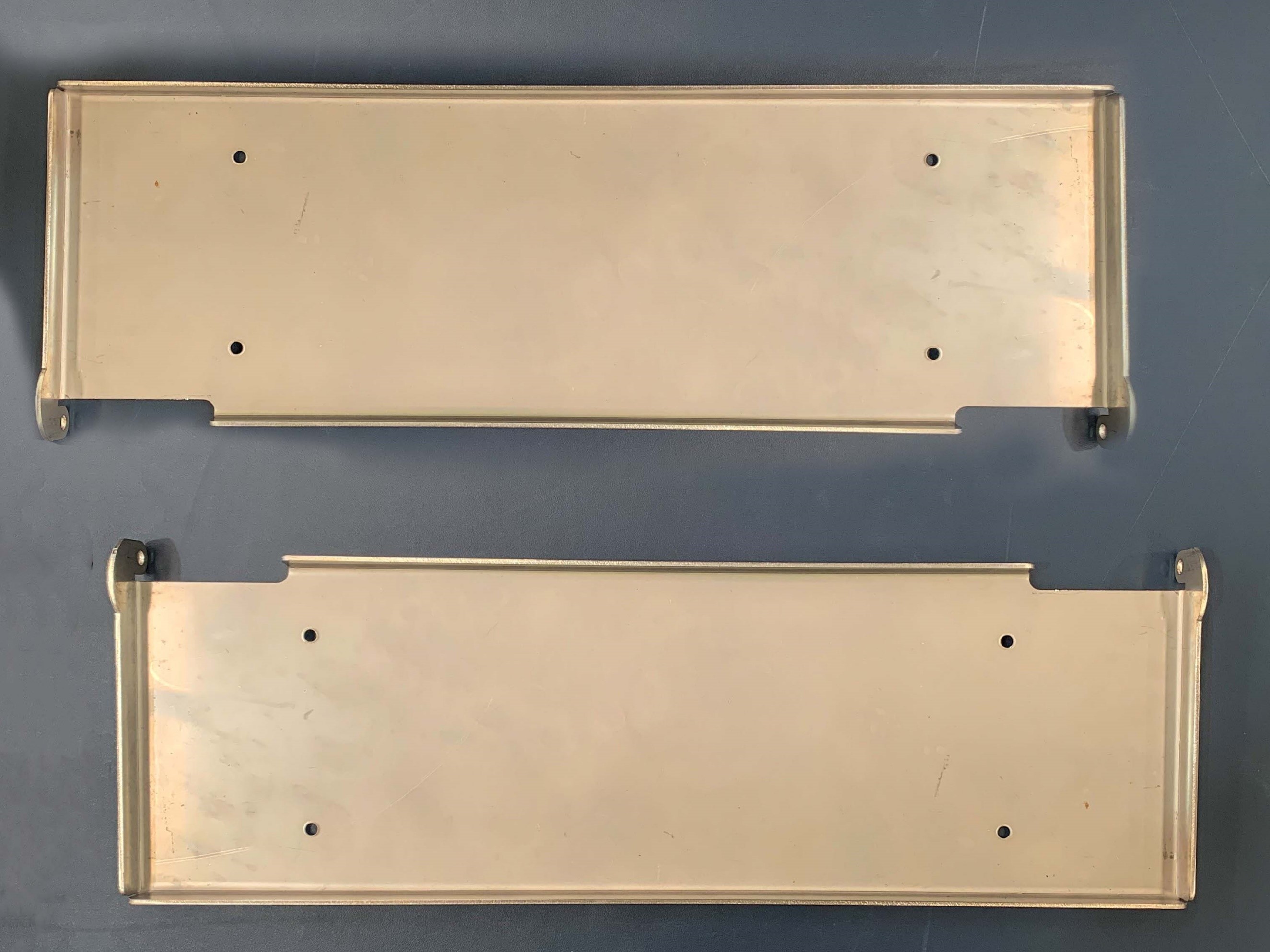

AU106016 T688/B Stainless Steel Tray Arm (Pair) (465575) AU106016
AU106017 T688/B Trinity Castor Pedal AU106017
AU106036 T688 Base Foot Switch Mod. AU106036
AU106046 T688/B M6 x 30mm Button Head Cap Screw AU106046 This item has not been set up in our system. No inventory will be brought in.
AU106050 T688/B M6 x 30mm Countersunk CKET Screw AU106050 This item has not been set up in our system. No inventory will be brought in.
AU106063 T688/B Trinity Castor 14mm (SI2792C) w/ Stopper AU106063 Replacement for AU105849
AU106064 36mm Xmas Trees - Black AU106064 This item has not been set up in our system. No inventory will be brought in.
AU106069 T688/B M8 x 35mm Button Head Cap Screw AU106069 This item has not been set up in our system. No inventory will be brought in.
AU106071 T688/B Outer Tube for Arm (494247) - L/H AU106071
AU106072 T688/B Outer Tube for Arm (494247) - R/H AU106072
AU106073 T688/B 25mm Round Ribbed Tube Insert AU106073
AU106084 T688/B Castor Brake Stop AU106084
AU106087 T688/B Grey Upholstery Plastic Clip (XA13CLIP01) AU106087 Replacement for AU100082
AU106092 T688/B Grey Upholstery Plastic Hook and Clip Set - Grey (XA13SET01) AU106092
AU106093 AU106093
AU106097 T688/B Upper Back Mk2 (1257)
AU106103-294 T688 Arm Profile Assembly - L/H - Wedgewood AU106103-294 This item was originally set up as AU300104-294 but we will use this item
AU106104-294 T688 Arm Profile Assembly - R/H - Wedgewood AU106104-294 This item was originally set up as AU300105-294 but we will use this item
AU106105 T688/B Tray Arm Post (T304 Stainless) - R/H AU106105 Replacement item for AU101737 - this item can be used on chairs manufactured after February 2021
AU106106 T688/B Tray Arm Post (T304 Stainless) - L/H AU106106 Replacement item for AU101763 - this item can be used on chairs manufactured after February 2021
AU106109 T688/B Tilt Frame Mk2 AU106109
AU106122 T688/B M10 x 12mm Shoulder Bolt AU106122
AU106131 T688/B Patient Handset (HB30147-00) AU106131 Replacement for AU103590

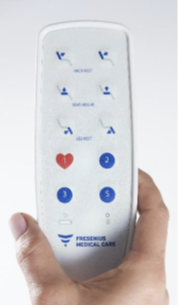

AU106132 T688/B Nurse Handset (HD8X032-04) AU106132 Replacement for AU103589
AU106133 T688/B M5 x 16mm Button Head Cap Screw AU106133 This item has not been set up in our system. No inventory will be brought in.
AU106146 T688/B M6 (10mm AF) Black NDPE Hex Cover Cap AU106146
AU106148 T688/B 9/16" x 1 1/4" 14g Flat Washer AU106148 This item has not been set up in our system. No inventory will be brought in. Replacement for Item #: AU105545
AU106151 T688 C07 - 100-240V Control Unit AU106151
AU106154 T688 Battery Cable (1019W7001-00500-B) AU106154
AU106155 T688 BA16 Battery PCP2.0 (BA1616121100) AU106155
AU106156 T688 C07 Control Box Mounting Bracket (1015W) AU106156 This item has not been set up in our system. No inventory will be brought in.

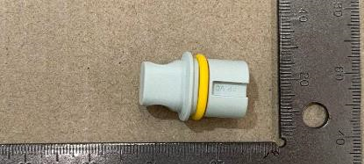

AU106157 T688 Port Plug (0961318-C) AU106157 This item has not been set up in our system. No inventory will be brought in.
AU106175 T688/B Tray Arm Bumper (624734) AU106175 Replacement for AU105798 and AU105801
AU106181 T688 C07 Back Cable (096-0850-B) AU106181 This item has not been set up in our system. No inventory will be brought in.
AU106182 T688 C07 Column and Seat Cable (096800-0460-B) AU106182 This item has not been set up in our system. No inventory will be brought in.
AU106188 T688 Top Frame - Multi Voltage AU106188 This item has not been set up in our system. No inventory will be brought in.
AU106227 T688/B Upper Back Frame Mk3 AU106227 For Bulletin # FM2024-01 (First Serial #: 3S0S091W)
AU106228 T688/B M8 x 50mm Handwheel (HWMM-3559) AU106228 For Bulletin # FM2024-01 (First Serial #: 3S0S091W)
AU106239-294 T688 Standard Backrest Mk3 - Wedgewood AU106239-294
AU106241-294 T688B Standard Backrest Mk3 - Wedgewood AU106241-294 For Bulletin # FM2024-01 (First Serial #: 3S0S091W)
AU106246 T688/B MJB5PLUS Cable Lock (0821147-B) AU106246

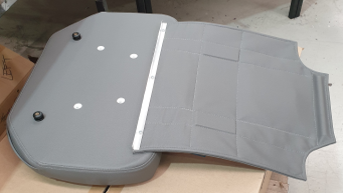

AU300102-294 T688 Foot-rest and Flap - Wedgewood AU300102-294 Separate Foot-rest Item #: AU105896 Separate Flap Item #: AU105753
